Product Specification
| Raw Material | ||||
| HRC | Meterial | MG Grain Size(μm) | CO(%) | Flexural Strength(N/mm²) |
| 45° | ZK30 | 0.7 | 10 | 3320 |
| 50° | WF25 CB | 0.6 | 10 | 4000 |
| 55° | K44UF Gurhing | 0.5 | 12 | 4300 |
| 65° | CTU08L CERATIZIT | 0.4 | 10 | 3700 |
| Super Coating | ||||
| AlTiN | TiAIN | TiSiN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(μm) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(ºC) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |

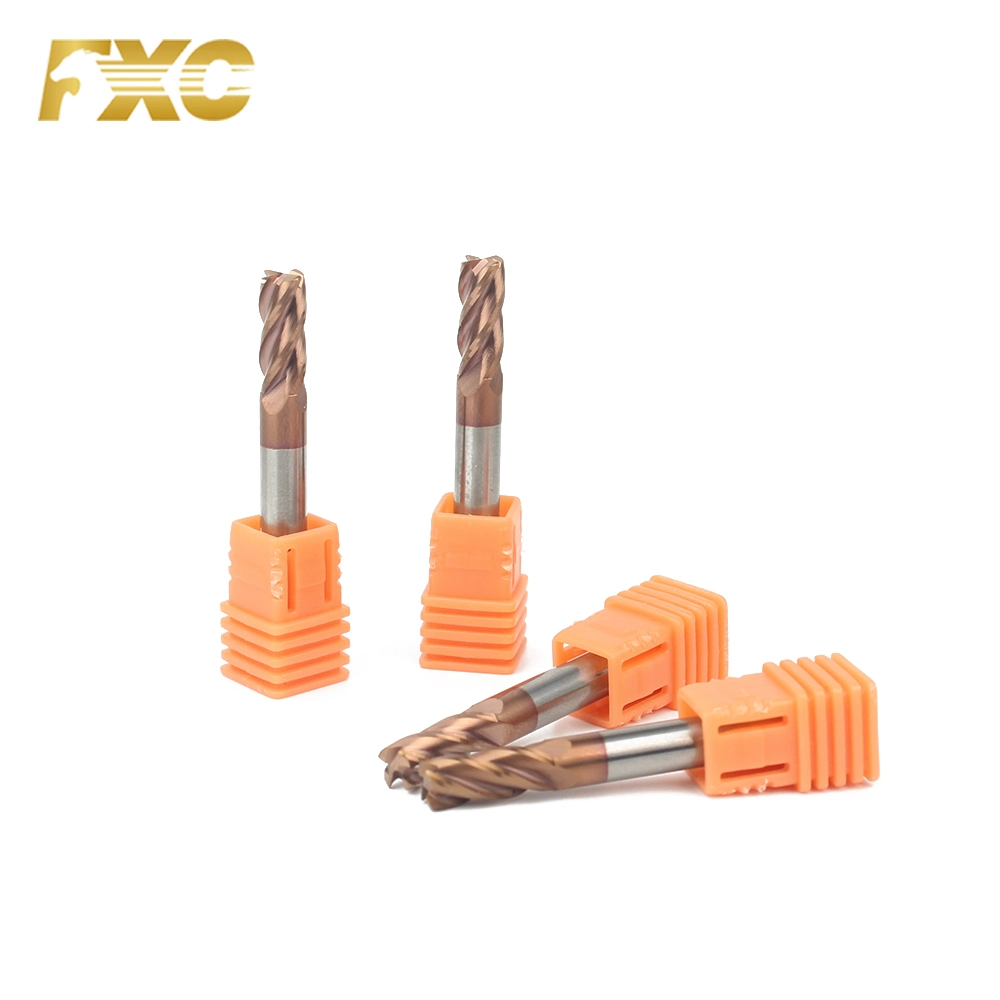

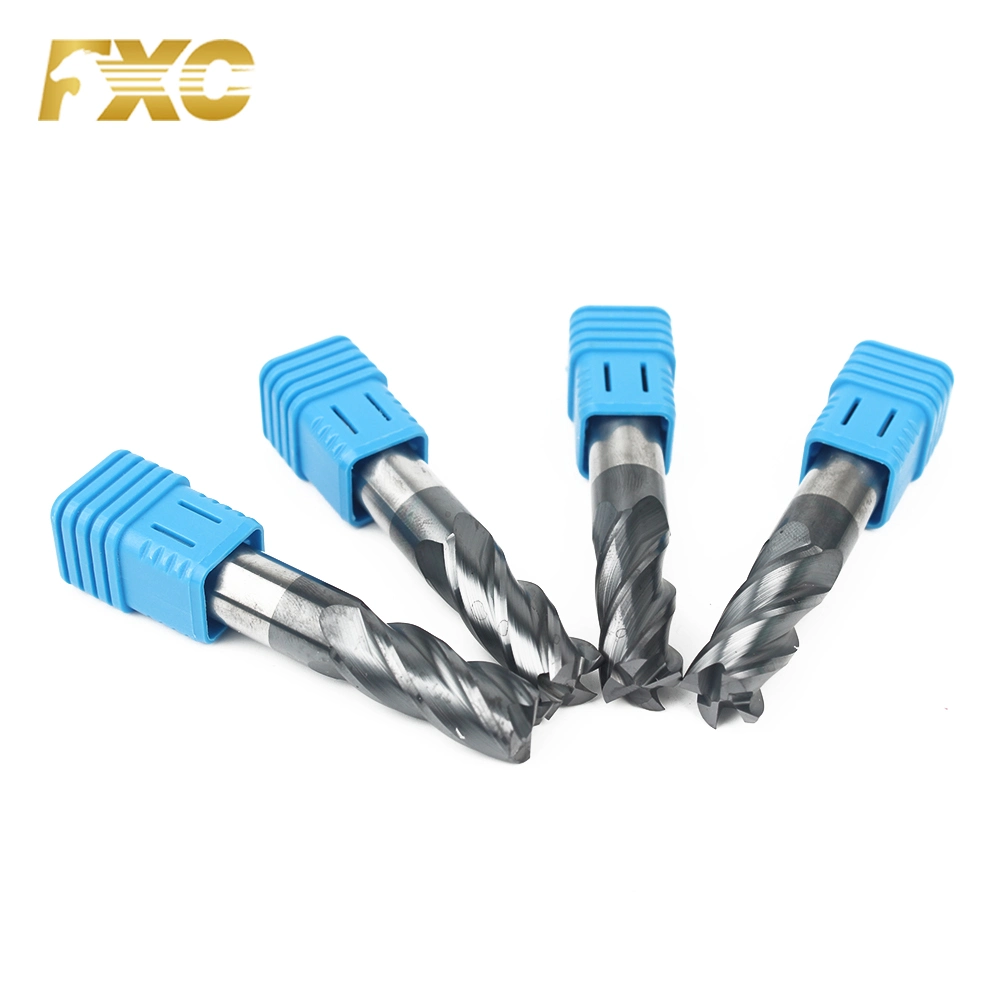

| Specifications of Flat End Mill (mm) | Cutting | Cutting Length | Shank | A.O.L | Flute |
| d | l | D | L | F | |
| 1.0×2.5×4D×50L×4F | 1 | 2.5 | 4 | 50 | 4F |
| 1.5×3.75×4D×50L×4F | 1.5 | 3.75 | 4 | 50 | 4F |
| 2.0×5.0×4D×50L×4F | 2 | 5 | 4 | 50 | 4F |
| 2.5×6.25×4D×50L×4F | 2.5 | 6.25 | 4 | 50 | 4F |
| 3.0×7.5×4D×50L×4F | 3 | 7.5 | 4 | 50 | 4F |
| 3.5×8.75×4D×50L×4F | 3.5 | 8.75 | 4 | 50 | 4F |
| 4.0×10×4D×50L×4F | 4 | 10 | 4 | 50 | 4F |
| 5.0×12.5×5D×50L×4F | 5 | 12.5 | 5 | 50 | 4F |
| 5.0×12.5×6D×50L×4F | 5 | 12.5 | 6 | 50 | 4F |
| 6.0×15×6D×50L×4F | 6 | 15 | 6 | 50 | 4F |
| 8.0×20×8D×60L×4F | 8 | 20 | 8 | 60 | 4F |
| 9.0*20*10D*75L*4F | 9 | 20 | 10 | 75 | 4F |
| 10.0×25×10D×75L×4F | 10 | 25 | 10 | 75 | 4F |
| 12.0×30×12D×75L×4F | 12 | 30 | 12 | 75 | 4F |
| 14.0×35×14D×100L×4F | 14 | 35 | 14 | 100 | 4F |
| 16.0×40×16D×100L×4F | 16 | 40 | 16 | 100 | 4F |
| 18.0×45×18D×100L×4F | 18 | 45 | 18 | 100 | 4F |
| 20.0×50×20D×100L×4F | 20 | 50 | 20 | 100 | 4F |
1.Are you manufacturer? Do you have factory?
We are Professional manufacturer ,we have more than 5 years experience in this field.
2.Does free shipping is possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
3.Can you send products to our Forwarder in China?
Yes, if you have forwarder in China, i will glad to send products to him/her.
4.Do you make OEM?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
5.How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.
6.Can you produce carbide Special Tool ?
Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample.
