Best quality carbide end mill Blue nano coated square end mill
Excellent Raw Material and Coating Type

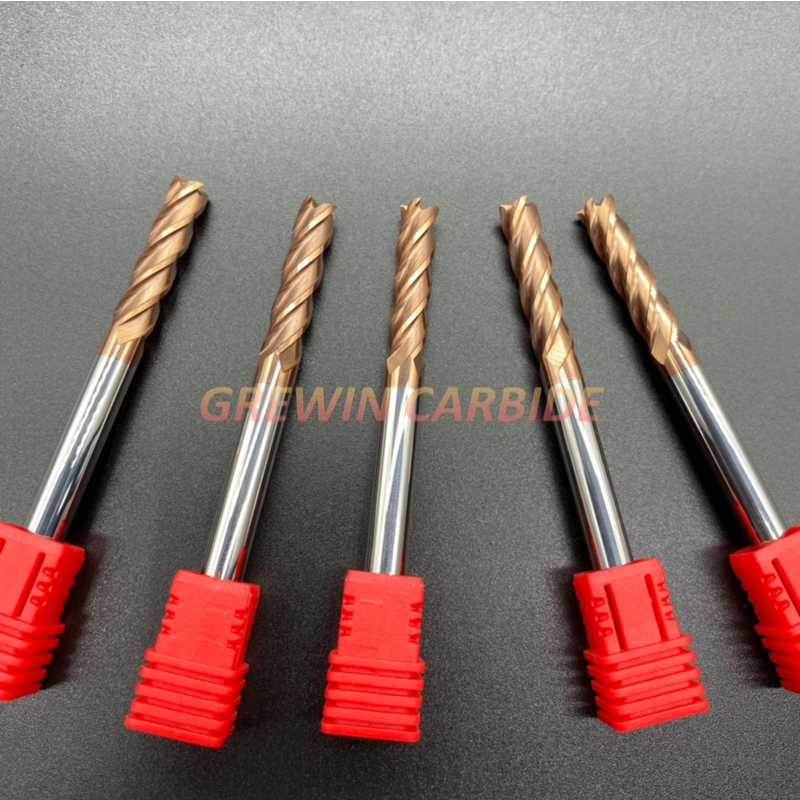

Product Show:
More information, please kindly contact us.
Best regards
Grewin carbide
Excellent Raw Material and Coating Type
| TYPE | Material | MG grain size | CO | Flexural strength |
| HRC45 | YG10X | 0.7um | 10% | 3320N/mm2 |
| HRC55 | YL10.2 &WF25 | 0.6um | 10% | 4000N/mm2 |
| HRC60 | K44 &K40 | 0.5um | 12% | 4300N/mm2 |
| HRC65 | H10F | 0.5um | 10% | 4300N/mm2 |
| Coating Type | Hardness(HV) | Thickness(UM) | Oxidation Temp.(ºC) | Color | Friction Coefficient |
| AlTin | 3200 | 2.5-3 | 900 | Black | 0.3 |
| Tialn | 2800 | 2.5-3 | 800 | Violet | 0.3 |
| TiSin | 3600 | 3 | 1000 | Copper | 0.45 |
| Naco | 42(GPA) | 3 | 1200 | Bule | 0.4 |
Product Show:
More information, please kindly contact us.
Best regards
Grewin carbide
